思い出すのに苦労したけど、FIRの係数を算出できたので、
せっかくだからゲイン特性の描画もやってみた。

use v5.14;
use strict;
use warnings;

use Imager;
use Math::Trig qw/pi/;
use List::Util qw/sum/;

use constant STEP_X => 4;
use constant SCALE_Y => 200.0;
use constant FIR_TAP => 19;
use constant SPECTRUM_SIZE => 201;

# グラフの描画に必要な最低限の幅（先端のマークを含まず）
my $graph_width = 1 + (STEP_X * (SPECTRUM_SIZE - 1));
my $graph_height = SCALE_Y + 1;
my ( $width, $height ) = ( $graph_width + 40, $graph_height + 100 );
my ( $x0, $y0 ) = ( int(($width - $graph_width) / 2), ($height - 20) );

say '=-' x 10, ' ', FIR_TAP, ' ', '=-' x 10;
if (1) {
    my $fir_tap = FIR_TAP;
    my $img = Imager->new(
        xsize => $width, ysize => $height, channels => 4 );

    draw_graduation( $img, Imager::Color->new(64,64,64) );

    my $fc = 0.4;
    my $fir = fir_lpf( $fir_tap, $fc );
    my $window = hamming_window( $fir_tap );
    my $fir2 = apply_window( $fir, $window );

    $fir = normalize( $fir );
    $fir2 = normalize( $fir2 );

    my $n = SPECTRUM_SIZE - 1;
    my @data1 = map { calc_gain( $fir, $_ / ($n * 2) ); } 0..$n;
    draw_spectrum( $img, \@data1, 'green' );
    my @data2 = map { calc_gain( $fir2, $_ / ($n * 2) ); } 0..$n;
    draw_spectrum( $img, \@data2, 'orange' );

    my $dst_file = sprintf( 'fir_gain_%02d.png', $fir_tap );
    $img->write( file => $dst_file ) or die $img->errstr;
}

sub normalize {
    my $fir = shift;

    my $gain = 1.0 / sum( @{$fir} );
    my @ret = map {
        $_ * $gain;
    } @{$fir};

    return \@ret;
}

sub apply_window {
    my ( $fir, $window ) = @_;

    my $n = @{$fir};
    my @ret = map {
        $fir->[$_] * $window->[$_];
    } 0..($n - 1);

    return \@ret;
}

sub fir_lpf {
    my ( $n, $fc ) = @_;

    my @fir = map {
        my $i = $_ - int($n / 2);
        if ( $i ) {
            sin(2.0 * $i * pi() * $fc) / ($i * pi());
        }
        else {
            2.0 * $fc;
        }
    } 0..($n - 1);

    return \@fir;
}

sub kaiser_window {
    my ( $n, $alpha ) = @_;

    my @ret = map {
        bessel( $alpha * sqrt(1.0 - ($_ ** 2.0)) ) / bessel( $alpha );
    } map {
        ($_ - int($n / 2)) / int($n / 2);
    } 0..($n - 1);

    #printf( "%2d: %.3f\n", $_, $ret[$_] ) for 0..($n - 1);

    return \@ret;
}

sub hann_window {
    my $n = shift;

    my @ret = map {
        my $x = 2.0 * pi() * $_;
        0.5 + (0.5 * cos($x));
    } map {
        ($_ - int($n / 2)) / ($n - 1);
    } 0..($n - 1);

    return \@ret;
}

sub hamming_window {
    my $n = shift;

    my @ret = map {
        my $x = 2.0 * pi() * $_;
        0.54 + (0.46 * cos($x));
    } map {
        ($_ - int($n / 2)) / ($n - 1);
    } 0..($n - 1);

    return \@ret;
}

sub bessel {
    my $x = shift;

    my $total = 1;
    my $factorial = 1;
    foreach my $n ( 1..20 ) {
       $factorial *= $n;
       my $tmp = (($x / 2) ** $n) / $factorial;
       $total += ($tmp * $tmp);
    }

    #say $total;
    return $total;
}

sub calc_gain {
    my ( $params, $w ) = @_;

    # H(z) = h0 + h1 * z^-1 + h2 * z^-2 + ...
    # z^1  = e^(jw)  = cos(w) + j*sin(w)
    # z^-1 = e^(-jw) = cos(w) - j*sin(w)

    # H(jw) = A - jB
    # |H(jw)| = sqrt( A^2 + B^2 )

    my @h = @{$params};
    my $n = scalar( @{$params} );
    my $re = sum( map {
        $h[$_] * cos( 2.0 * pi * $_ * $w );
    } 0..($n - 1) );
    my $im = sum( map {
        -1.0 * $h[$_] * sin( 2.0 * pi * $_ * $w );
    } 0..($n - 1) );

    return sqrt( ($re * $re) + ($im * $im) );
}

sub draw_spectrum {
    my ( $img, $data, $color ) = @_;

    my $img_tmp = Imager->new(
        xsize => $img->getwidth(), ysize => $img->getheight(), channels => 4 );

    my $n = scalar( @{$data} );
    for (my $i=0; $i<$n; $i++) {
        my $dx = $i * STEP_X;
        my $dy = int($data->[$i] * SCALE_Y);

        $img_tmp->line(
            x1 => ($x0 + $dx), y1 => $y0,
            x2 => ($x0 + $dx), y2 => ($y0 - $dy),
            color => $color );
    }

    $img->compose( src => $img_tmp, opacity => 0.25, combine => 'add' );

    for (my $i=0; $i<$n; $i++) {
        my $dx = $i * STEP_X;
        my $dy = int($data->[$i] * SCALE_Y);

        my ( $x, $y ) = ( ($x0 + $dx), ($y0 - $dy) );
        $img->box(
            xmin => $x - 1, ymin => $y - 1, xmax => $x + 1, ymax => $y + 1,
            color => $color, filled => 0 );
    }
}

sub draw_graduation {
    my ( $img, $color ) = @_;

    $img->box( filled => 1, color => 'black' );

    for ( 0..6 ) {
        my $x = $x0 + ((($graph_width - 1) / 5) * $_);
        $img->line(
            x1 => $x, y1 => $y0,
            x2 => $x, y2 => $y0 - (($graph_height - 1) * 1.2),
            color => $color );
    }

    for ( 0..12 ) {
        my $y = $y0 - ((SCALE_Y / 10) * $_);
        $img->line(
            x1 => $x0, y1 => $y,
            x2 => $x0 + ($graph_width - 1), y2 => $y,
            color => $color );
    }
}

ちょいちょい余計なコードが残ってるけどご愛嬌ということで。
IIRのゲイン特性の計算(*1)を見ながらやったので、
思ったより簡単にできた。

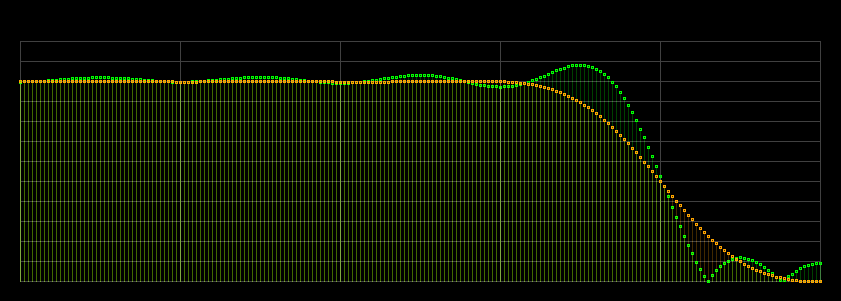

今回は、窓関数のありとなしを重ねて描画。

おしまい。

(*1) https://github.com/techno-cat/p5-Cassis/blob/master/Samples/amplitude_spectrum.pl
